What Can ICM Do for You?
Welcome to the Cloud Age! Are you eyeing its opportunities but wary of its challenges? Specifically,
ICM can help! ICM gives you a simple, intuitive way to provision cloud infrastructure and deploy services on it, helping you get into the cloud now without major development or retooling. The benefits of infrastructure as code (IaC) and containerized deployment make it easy to deploy InterSystems IRIS-based applications on public cloud platforms such as Google, Amazon, and Azure, or on your private VMware vSphere cloud. Define what you want, issue a few commands, and ICM does the rest.
Even if you are already using cloud infrastructure, containers, or both, ICM dramatically reduces the time and effort required to provision and deploy your application by automating numerous otherwise manual steps.
How Does ICM Work?

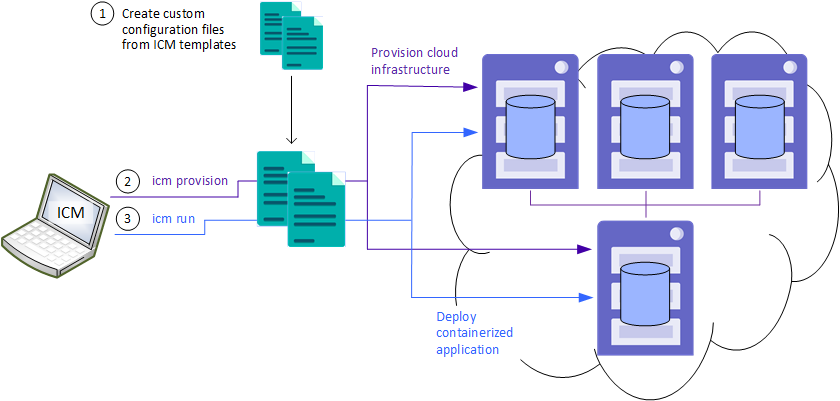

Guided by your input in plain-text configuration files, ICM provisions your infrastructure using the popular Terraform IaC tool from Hashicorp and configures the provisioned compute nodes as needed. In the next phase, ICM deploys InterSystems IRIS and your application in Docker containers, as well as other services if desired. All of the InterSystems IRIS configuration needed for the deployment you want is carried out automatically. ICM can also deploy containerized services on existing virtual and physical clusters.
ICM itself comes in a Docker container that includes everything you need. Download and run the ICM image from InterSystems to open the command line, and you are ready to go. ICM makes it easy for you by combining these elements:
ICM Makes It Easy
Try It! Deploy InterSystems IRIS in the Cloud with ICM
ICM carries out many tasks for you and gives you numerous options to help you deploy exactly what you need, so its use in production involves a certain amount of planning and preparation (although much less than manual methods!). But the provisioning and deployment process is simple, and ICM can make many decisions for you. This exploration is designed to let you see for yourself how ICM works, and how easy it is to deploy an InterSystems IRIS configuration on Amazon Web Services (AWS) using ICM. While it is not the work of a moment, this exploration should not take up too much of your time, and you can do it in stages as opportunity arises.
To give you a taste of ICM without bogging you down in details, we’ve kept this simple; for example, we’ve had you use as many default settings as possible. When you bring ICM to your production systems, though, there are many things you will need to do differently, especially in regard to (but not limited to) security. So be sure not to confuse this exploration of ICM with the real thing! The sources provided at the end of this document will give you a good idea of what’s involved in using ICM in production. The ICM Guide provides complete information and procedures for using ICM.
These instructions assume you have container-specific InterSystems IRIS sharding licenses and access to InterSystems software downloads. They also assume you are deploying on AWS, but if you prefer, you can deploy InterSystems IRIS on Google Cloud Platform (GCP) or Microsoft Azure (Azure) instead. The difference lies in the properties to be specified in your configuration files; most are common across platforms, but others are platform-specific. Detailed information about these differences can be found in the Provider-Specific Parameters section of the “ICM Reference” chapter of the ICM Guide.
Install Docker
ICM is provided as a Docker image that includes everything you need. Therefore the only requirements for the Linux, macOS, or Microsoft Windows system on which you launch ICM are that Docker is installed, with the Docker daemon running, and that the system is connected to the Internet. For information about installing Docker on your platform, see Install Docker in the Docker documentation.
Identify the Docker Repository and Credentials
To download and run the ICM image, and to deploy the InterSystems IRIS image in the cloud using ICM, you need to identify the Docker repository in which these images are located and the credentials you need to log into that repository. The repository must be accessible to the cloud provider you use (that is, not behind a firewall) so it can download the ICM and InterSystems IRIS images, and for security must require ICM to authenticate using credentials distributed by your organization.
InterSystems images are distributed as Docker tar archive files, available in the InterSystems Worldwide Response Center (WRC) download area. Your enterprise may already have added these images to its Docker repository; in this case, you should get the location of the repository and the needed credentials from the appropriate IT administrator. If your enterprise has a Docker repository but has not yet added the InterSystems images, get the location of the repository and the needed credentials, obtain the tar archive files containing the ICM and InterSystems IRIS images from the WRC, and add each of them to the repository using the following steps on the command line:
  1. docker load -i archive_file
  2. docker tag your_repository/image_name:version
    For example:
    docker tag acme/icm:latest
  3. docker login your_repository
    For example:
    docker login
    Pasword: **********
  4. docker push your_repository/image_name:version
    For example:
    docker push acme/icm:latest
If your organization does not have an internet accessible Docker repository, you can use the free (or extremely low cost) Docker Hub for your testing. Docker Hub allows you to create organizations and add users to them to provide secure access to your images.
The major versions of the image from which you launch ICM and the InterSystems images you deploy must match. For example, you cannot deploy a 2019.2 version of InterSystems IRIS using a 2019.1 version of ICM.
Launch ICM
To launch ICM on the command line, use the following docker run command to pull (download) the ICM image from the repository (for example acme), create a container from it, and start the container:
docker run --name icm -it --cap-add SYS_TIME acme/icm:latest
Get an AWS Account and Credentials
ICM can provision and deploy on three public cloud platforms: Amazon Web Services (AWS), Google Cloud Platform (GCP), and Microsoft Azure. Here we will use AWS. You can create a free trial account at
Once you have created the account, download administrative credentials by following the instructions on the AWS Managing Access Keys page. Next, copy the credentials from the .csv file in which they are downloaded to another file, in the following format
aws_access_key_id = <value in "Access key ID" column>
aws_secret_access_key = <value in "Secret access key" column"
It is this new file that you will identify to ICM as your AWS credentials file.
For information about how to download and use credentials for a GCP or Azure account, see Google Cloud Platform (GCP) Parameters and Microsoft Azure (Azure) Parameters in the ICM Guide.
Generate Security Keys
ICM communicates securely with the cloud provider on which it provisions the infrastructure, with Docker on the provisioned nodes, and with several InterSystems IRIS services following container deployment. You have already downloaded or identified your cloud credentials; you also need other files to enable secure SSH and SSL/TLS communication.
You can create the files you need using two scripts provided with ICM, The script creates the needed SSH files and places them in the directory /Samples/ssh in the ICM container. The script creates the needed SSL/TLS files and places them in /Samples/tls.
To run these scripts on the ICM command line, enter the following:
Generating keys for SSH authentication.
Generating keys for TLS authentication.
For more information about the files generated by these scripts, see Obtain Security-Related Files, ICM Security, and Security-Related Parameters in the ICM Guide.
These generated keys are intended as a convenience for your use in this First Look experience and other tests; in production, you should generate or obtain the needed keys in keeping with your company's security policies. The keys generated by these scripts, as well as your cloud provider credentials, must be fully secured, as they provide full access to any ICM deployments in which they are used.
Customize the Sample Configuration Files
To define the configuration you want ICM to deploy, you include the needed settings in two JSON-formatted configuration files: the defaults file and the definitions file. The former (defaults.json) contains settings that apply to the entire deployment — for example, your choice of cloud provider — while the latter (definitions.json) defines which types of nodes you want and how many of each, thereby determining whether you deploy a sharded cluster, a single stand-alone IRIS instance, or some other configuration.
Sample configuration files for AWS are located in the /Samples/AWS directory in the ICM container (there are also directories for the other platforms). To customize these files, use an editor such as vi to edit them directly within the container, or use the docker cp command on the local command line to copy them from the container to the local file system, and then back again after you have edited them, for example:
docker cp icm:/Samples/AWS/defaults.json .
docker cp icm:/Samples/AWS/definitions.json .
docker cp defaults.json icm:/Samples/AWS
docker cp definitions.json icm:/Samples/AWS
If you are deploying on GCP or Azure, you can use the sample configuration files in /Samples/GCP or /Samples/Azure. For fields specific to those platforms that are not covered in this document, see Google Cloud Platform (GCP) Parameters and Microsoft Azure (Azure) Parameters in the ICM Guide.
The /Samples directory is intended to make it easy for you to provision and deploy using ICM out of the box. Because it is inside the ICM container, however, data in it does not persist when the container is removed. In production, the best practice is to use locations outside the container to store this data by mounting external volumes when you launch ICM (see Manage data in Docker in the Docker documentation).
Customize defaults.json
The following tables indicate the minimum customization needed for /Samples/AWS/defaults.json file, plus suggestions for optional changes. (The settings in the table are ordered differently than in the sample defaults.json file.) The first setting in the file is “Provider”: “AWS”; do not change this. See Amazon Web Services (AWS) Parameters in the ICM Guide and the AWS documentation for more information about these settings.
Setting in /Samples/AWS/defaults.json Description What to do
"Credentials": "/Samples/AWS/sample.credentials"
Location of downloaded AWS credentials file.
Use docker cp to copy your AWS credentials file (see Get an AWS Account and Credentials) to this location.
"Region": "us-west-1"
"Zone": "us-west-1c"
Geographical location and zone of compute resources used to provision infrastructure. OPTIONAL: Change to your preferred region and zone.
"AMI": "ami-18726478"
"InstanceType": "m4.large"
Amazon Machine Image (AMI) and instance type used to provision compute nodes.
(to list public AMIs available, in the EC2 Console, select AMIs in the navigation pane and filter for Public AMIs; for a list of public RHEL 7,2 or later AMIs, see the note following this table))
ICM currently supports provisioning of and deployment of containers on compute nodes running Red Hat Enterprise Linux, version 7.2 or later and Ubuntu version 18.04 or later.
OPTIONAL: Change to your preferred AMI and instance type.
Some instance types may not be compatible with some AMIs. The settings provided in the sample defaults.json are compatible.
"SSHUser": “ec2–user”
Nonroot account with sudo access on provisioned nodes, used by ICM for access; determined by selected AMI.
Do not change if using Red Hat Enterprise Linux image.
"Label": "Sample",
"Tag": "TEST",
Arbitrary fields in naming scheme for provisioned cloud nodes: Label-Role-Tag-NNNN, for example Acme-DM-TEST-0001 or Acme-DS-TEST-0005. Update with custom information indicating ownership and purpose, to avoid conflicting with others testing ICM. Multiple deployments should not share the same Label and Tag.
"SSHPrivateKey": "/Samples/ssh/insecure",
"SSHPublicKey": "/Samples/ssh/",
"TLSKeyDir": "/Samples/tls/",
Security keys for SSH and SSL/TLS (see ICM Security and Security-Related Parameters in the ICM Guide). If you used the key generation scripts discussed in Generate Security Keys, the keys are located in these directories; make no changes.
If you provided your own keys, use docker cp to copy them from the local file system to these locations.
“LicenseDir”: “/Samples/Licenses” Staging directory for InterSystems IRIS license keys. Place your InterSystems IRIS license key in this directory.
"DockerImage": "intersystems/iris:stable"
"DockerUsername": "xxxxxxxxxxxx",
"DockerPassword": "xxxxxxxxxxxx",
The Docker image to be deployed on all provisioned nodes, and the credentials needed to download that image if in a private repository; see Identify Docker Repository and Credentials for important information. Change these values to reflect the repository information and credentials you identified in Identify Docker Repository and Credentials.
"ISCPassword": "",
Password for predefined accounts in deployed InterSystems IRIS images. To provide the password interactively with masked input during the deployment phase, remove this field. Otherwise, change to your preferred password.

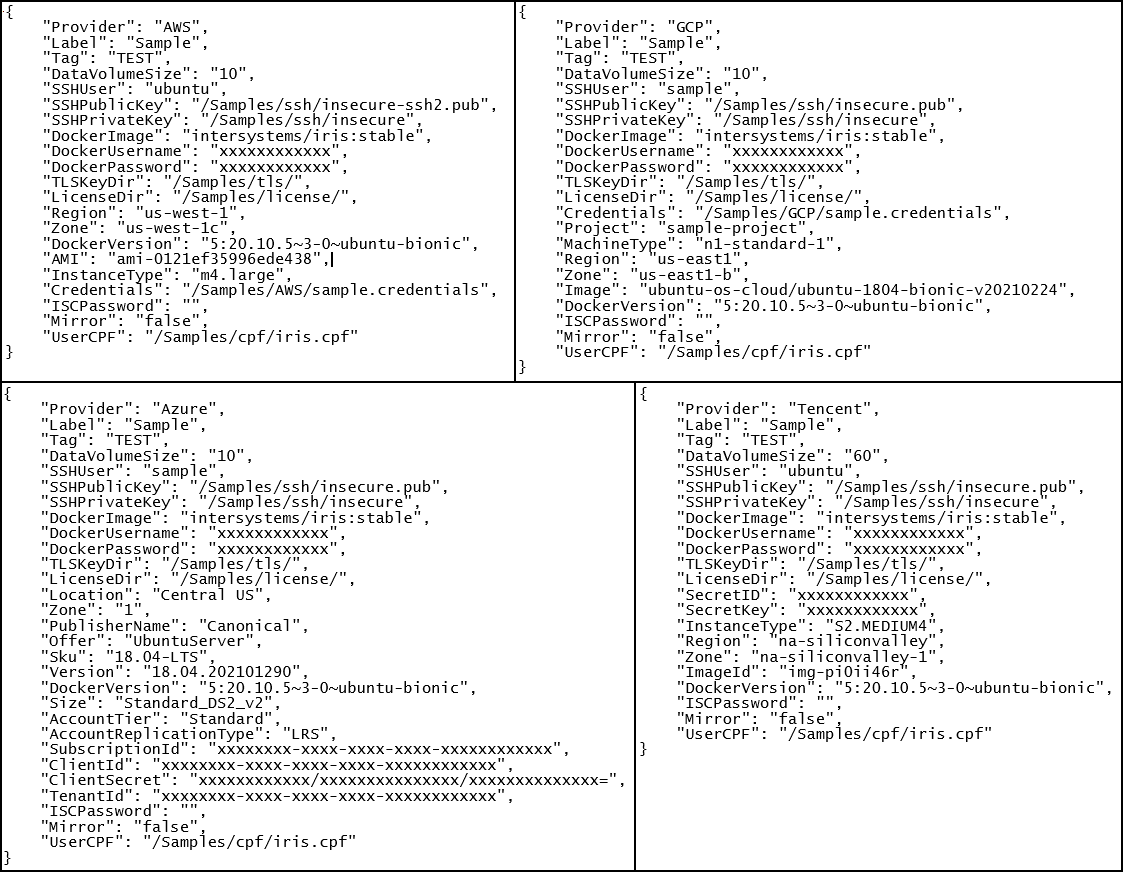

Settings specific to GCP and Azure differ from those for AWS. For information about the settings you will need to modify in the defaults.json files in the /Samples/GCP and /Samples/Azure directories, see Provider-Specific Parameters in the ICM Guide.
Additional choices for AWS RHEL 7.2 or later AMIs are listed in the following table; this information is subject to change at any time. More images can be found in the Amazon marketplace.
Asia Pacific (Singapore)
Asia Pacific (Sydney)
Asia Pacific (Tokyo)
Asia Pacific (Seoul)
EU (Frankfurt)
EU (Ireland)
South America (Sao Paulo)
US East (N. Virginia)
US West (N. California)
US West (Oregon)
Customize definitions.json
The /Samples/AWS/definitions.json file (which is the same for all providers) defines a basic sharded cluster with a shard master data server and two shard data servers, as follows. The Role field identifies the node type being provisioned, which in this case is DM for the shard master data server and DS for the shard data servers. The Count field indicates how many of that type to provision; StartCount starts numbering at 0002 for the DS nodes.
    "Role": "DM",
    "Count": "1",
    "LicenseKey": "sharding-iris.key"
    "Role": "DS",
    "LicenseKey": "sharding-iris.key",
    "Count": "2",
    "StartCount": "2"
All DM, DS, AM, and QS nodes deployed by ICM require an InterSystems IRIS license; when a sharded cluster is deployed, all nodes must have a sharding license. (When DM and AM nodes are deployed in another configuration, a standard license is sufficient.). Use docker cp to copy a sharding license to the specified location within the container, such as /Samples/Licenses, and update the LicenseKey setting in each node definition to specify license key to use.
That is the only definitions.json change required to provision the basic sharded cluster. To provision a stand-alone InterSystems IRIS instance, remove the section defining the DS nodes so that the file looks like this:
    "Role": "DM",
    "Count": "1",
    "LicenseKey": "standard-iris.key""
Provision the Infrastructure
By default, ICM takes input from the configuration files in the current directory, so all you need to do to provision your infrastructure is change to the /Samples/AWS directory and issue this command:
icm provision
The icm provision command allocates and configures compute nodes on the platform you have selected. During the provisioning operation, ICM creates or updates state and log files in the state subdirectory and when finished creates the instances.json file, which serves as input to subsequent deployment and management commands.
Because ICM runs multiple tasks at once, the steps (Terraform plan and apply, copying files, mounting volumes, and so on) may not start and complete on the nodes in the same sequence. At completion, ICM provides a summary of the compute nodes that have been provisioned, and outputs a command line which can be used to delete the infrastructure at a later date, as shown in the following:
Machine             IP Address       DNS Name
-------             ---------        -------
To destroy: icm unprovision -stateDir /Samples/AWS/ICM-8620265620732464265 [-cleanUp] [-force]
Copy the icm unprovision command provided in the output and save this information, so you can easily replicate it when unprovisioning. This output also appears in the icm.log file.
The files and directories needed to both manage and unprovision your infrastructure are inside the ICM container, and thus are lost when you remove it. Be sure you are finished with the infrastructure and have successfully unprovisioned it before removing the ICM container. In production, the best practice is to use locations outside the container to store this data by mounting external volumes when you launch ICM (see Manage data in Docker in the Docker documentation).
Detailed information about errors that occur during the provisioning and deployment phase is written to terraform.err files in subdirectories of the state directory; when an error occurs, ICM directs you to the appropriate file, which can help you identify the cause of the problem.
If icm provision does not complete successfully due to timeouts and internal errors on the provider side, you can issue the command again, as many times as needed, until ICM completes all the required tasks for all the specified nodes without error. When doing so you must use the -stateDir option to specify the state directory (such as /Samples/AWS/ICM-8620265620732464265) created the first time, to indicate that provisioning is already in process and provide the needed information about what has been done and what hasn’t. However, if you determine that the problem was caused by an error in a configuration file, unprovision the infrastructure, fix the error, and run icm provision again.
For more information about icm provision, see The icm provision Command in the ICM Guide.
Deploy InterSystems IRIS
In addition to downloading Docker images on the provisioned compute nodes and running them as containers, ICM carries out InterSystems IRIS-specific configuration and other tasks. To deploy InterSystems IRIS on your provisioned nodes, remain in the /Samples directory in which you customized the configurations files and provisioned the infrastructure and issue this command:
icm run
By default, icm run downloads and runs the image specified by the DockerImage field in the configuration files, in this case the InterSystems IRIS image from the InterSystems repository; each container is named iris. In practice, using different DockerImage fields in the node definitions in the definitions file (instead of once for all nodes in the defaults file, as here) lets you run different images on different node types, and beyond that you can execute the icm run command multiple times with certain options to deploy multiple containers with unique names on each provisioned node or only on specified nodes.
After InterSystems IRIS starts on each node, ICM does whatever configuration of the instance is needed — for example, resetting the password, creating the namespace you specified, configuring sharding, and so on. Because ICM runs multiple tasks at once, the steps in the deployment process may not start and complete on the nodes in the same sequence.
At completion, ICM outputs a link to the Management Portal of the appropriate InterSystems IRIS instance; in this case, the provided link is for the shard master data server (DM) node, or for the stand-alone instance if that is the configuration you chose. Open the link in your browser and explore InterSystems IRIS using the Management Portal.
In the event of an error, see the log file ICM directs you to for information that can help you identify the cause of the problem.
Unlike the icm provision command, the icm run command cannot simply be repeated if it fails on one or more nodes. Generally speaking, there are two causes for deployment failures.
For more information about the icm run command and its options, see The icm run Command in the ICM Guide.
Try ICM Management Commands
ICM provides a number of commands for
These commands are discussed in detail in the ICM Guide sections Infrastructure Management Commands, Container Management Commands, and Service Management Commands, and comprehensively listed in ICM Commands and Options. Some examples are provided here for you to try on your deployment. Note in particular that three commands (icm ssh, icm exec, and icm session) let you interact with the nodes of your deployment on several levels — with the node itself, with the container deployed on it, and with the running InterSystems IRIS instance inside the container, as shown in the following:
Interactive ICM Commands
Try these commands on your newly deployed InterSystems IRIS configuration!
  1. List the provisioned compute nodes:
    icm inventory
  2. Run a shell command on each of the compute nodes:
    icm ssh -command "df -k"
    When a command is executed on more than one node, the output is written to files and a list of output files provided. For example, in this case, if you deployed the sharded cluster, there is one output file for each of the three nodes.
  3. Open an interactive shell on a specific compute node:
    icm ssh -role DM -interactive
    To be interactive, a command must use the -interactive option and specify a single node. For example, while icm ssh can execute a command on multiple nodes, as shown in the previous example, it can open an interactive shell on one node only with the -interactive option, as shown in this example. In place of the -role DM option, which restricts the command to that type of node (of which there is just one in your deployment), you could also use the -machine option to specify the name of a particular node, for example:
    icm ssh -machine LAURA-DM-TEST-0001 -interactive
  4. Display the status of the deployed InterSystems IRIS containers:
    icm ps
    When multiple containers are deployed on the nodes, this command lists them all.
  5. Copy a local file to the InterSystems IRIS containers, or to one of the containers:
    icm cp -localPath /Samples/ssh/ssh_notes -remotePath /home/sshuser
    icm cp -localPath /Samples/ssh/ssh_notes -remotePath /home/sshuser -role DM
  6. Run a shell command within each of the InterSystems IRIS containers:
    icm exec -command "ls /intersys/"
  7. Open an interactive shell (or run any shell command) within a particular InterSystems IRIS container:
    icm exec -command "bash" -role DM -interactive
  8. Open a Terminal window for an InterSystems IRIS instance (always interactive, for a single instance):
    icm session -machine LAURA-DM-TEST-0001
  9. Run a SQL command against each of the InterSystems IRIS instances, or against a particular instance:
    icm sql -command "SELECT Name FROM Security.Users" -namespace %SYS
    icm sql -command "SELECT Name FROM Security.Users" -namespace %SYS -role DM
    The -namespace option determines the namespace in which the SQL executes.
Unprovision the Infrastructure
Because AWS and other public cloud platform instances continually generate charges, it is important that you unprovision your infrastructure immediately after completing this experience.
To do this, copy the icm unprovision command you saved from the output of icm provision to the ICM command line, for example:
$ icm unprovision -stateDir /Samples/AWS/ICM-2416821167214483124 -cleanUp
This command deallocates the provisioned infrastructure based on the state files created during provisioning, so the -stateDir option is required; you cannot simply enter icm unprovision. If you did not save the command from the provisioning output, you can find it in the icm.log file in your working directory (for example, /Samples/AWS/icm.log). The -cleanUp option deletes the state directory after unprovisioning; without it, the state directory is preserved.
ICM Can Do Much More Than That!
Although the ICM exploration you just completed was deliberately streamlined, it nonetheless included real-world infrastructure provisioning and service deployment. Adding to what you just accomplished is only a matter of extending your deployment definition in the configuration files and taking advantage of a host of command-line options. For example, you can
All of these possibilities and more are covered in the ICM Guide.
